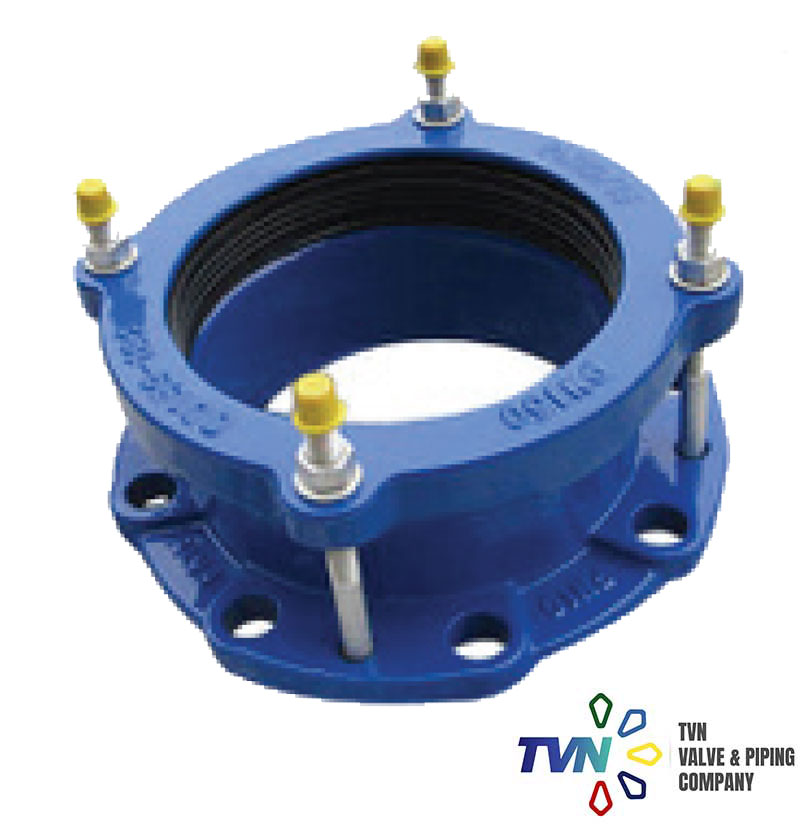

V351 Flange Adaptor is one of the most basic types of fittings. On one side, it has a flange connection in accordance with the required flange standard, on the other an insertion socket for the pipe. A variety of standard pipe types can be connected. Flange adaptors consist of one follower end ring, a middle ring and flange, one gasket and a set of bolts and nuts. Flange adaptors are ideal for joining a pipe to a flanged product like for instance a gate valve, butterfly valve, return flow inhibitors or fittings in gen- eral. Similar to a coupling, the compression chamber is formed by the follower end ring, middle ring and pipe surface. TVN flange adaptors can be equipped with flanges to any standard.

Application Range

1. Water distribution lines
2. Water transmission pipelines
3. Waste water applications
4. Pumping Stations

Related Products

1. V401 Coupling
2. V151 Gate Valve

Flange Adaptor Product Features

1. Adaptor has an expansion and contraction of ± 2,5 mm for the gasket, and offers an adjustability of ± 25 mm during installation as well an angular deflection of 3°.
2. Fast and easy installation. Wide range and wide tolerance. Ideal for repair and maintenance.
3. Resistant to corrosion.
4. Ductile iron GGG-40/50 body galvanized 8.8 bolts, nuts and washers.
5. Larger sizes and higher pressure ratings up to 25 bar are always possible depending on customer requirements.
6. The anti-torque bolts also make the flange adaptor suitable for a fast “one-man installation”.
7. Zero stem leakage eliminates media loss and satisfies environmental regulations.
8. Flange adaptor does not offer end load restraint, it requires a fixed point in the pipeline
9. The adaptors can be used at many types of pipes, including steel, ductile iron, PVC, GRP and concrete pipes with asbestos.
10. No need to use special tools and any extra gaskets for installation.
11. Hydrostatic test pressure for shell: PN x 1.5 according to EN 12266-1.
