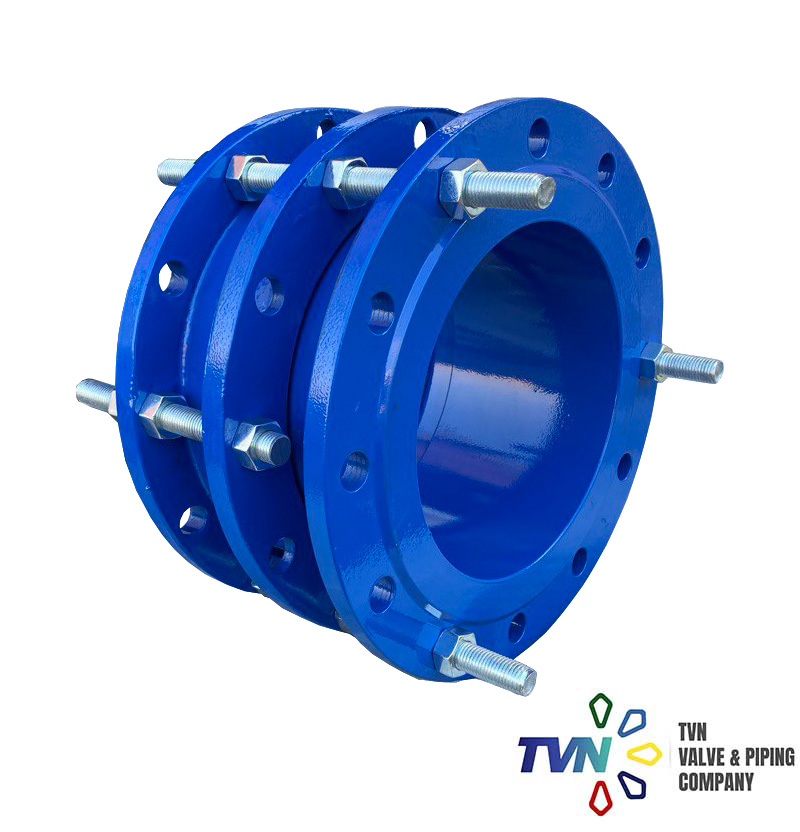

TVN V252 Joints de Démontage de Type Léger sont les éléments cruciaux pour l’installation et le démontage des vannes et autres raccords sur les tuyauteries. La fonction auto-retenue permet une étanchéité étanche et reste fixe sur les lignes avec des temps prolongés. Sans un joint de démontage offrant un réglage longitudinal, il est presque impossible d’insérer une vanne exactement dans une section de tuyau.
Équipé de deux brides et d’un anneau d’extrémité suiveur. Cette conception offre un contrôle optimal du joint avec les boulons à goujons séparés appliquant une pression sur le joint indépendamment des tirants faisant les connexions de bride.
Grâce à cette adaptabilité du joint de démontage, la vanne peut être montée à côté du joint de démontage, et le joint de démontage peut être réglé à la longueur exacte requise avant d’être solidement connecté aux brides.
Application Range
- Potable water applications
- Water treatment and distribution systems
- Mining industry
- Shipbuilding and drilling facilities
- Chemical and petrochemical plants
- Food and chemical enterprises
- Oil and gas processes
- Fire extinguishing systems
Related Products
- V151 Gate Valve
- V106 Double Eccentric Butterfly Valve
- V202 Tilting Check Valve
Light Type Dismantling Joint Product Features
- The light model V252 comes equipped with 2 flanges and 25-50% tie rods for PN 10 and PN 16 networks.
- The joint makes an unrestrained set-up possible. Here no threaded tie-rods are used allowing the dismantling joint to act as a limited expansion joint absorbing noises and vibrations in the pipeline.
- Only high-quality EPDM or NBR qualities for water, drinking water and sewage are used for the gasket. These guarantee a clean seal for years and at the same time the movement of the dismantling joint.
- It is easy to install and remove thanks to the standard longitudinal adjustability of ± 25 mm and thus offers perfect support during the installation and removal of valves.
- High-quality FBE coatings protect TVN dismantling joints from long term corrosion.
- Ductile iron GGG-40/50 body galvanized 8.8 bolts, nuts and washers.
- The bolts, nuts and washers can be chosen as AISI 304 or AISI 316 stainless steel.
- Certain types of dismantling joints are also suitable for use without restraint in flexible pipelines.
- Connection flanges to any standard are available upon customer request.
- Larger nominal sizes, higher pressure ratings and non-standard build lengths are also available on request.
- The ductile iron body has high resistance to the high tension stress which can occur at the pipelines.
- Hydrostatic test pressure for shell: PN x 1.5 according to EN 12266-1.
